How to Capacity Test Camera Batteries

OEM batteries have a huge markup. Capacity testing batteries allows you to confidently save money by buying third party batteries.

Third party batteries can be 1/4 the price, but there are no assurances about quality. For less than $30 you can have a setup that will allow you to test camera batteries.

Capacity testing batteries provides factual data that can be used to judge a battery. You check to see if a OEM battery is dying or a new one is fake. You can see how third party brands are blatantly lying about the capacity of their batteries.

/how-to-capacity-test-camera-batteries/naked-sony-np-fw50-batteries.jpg

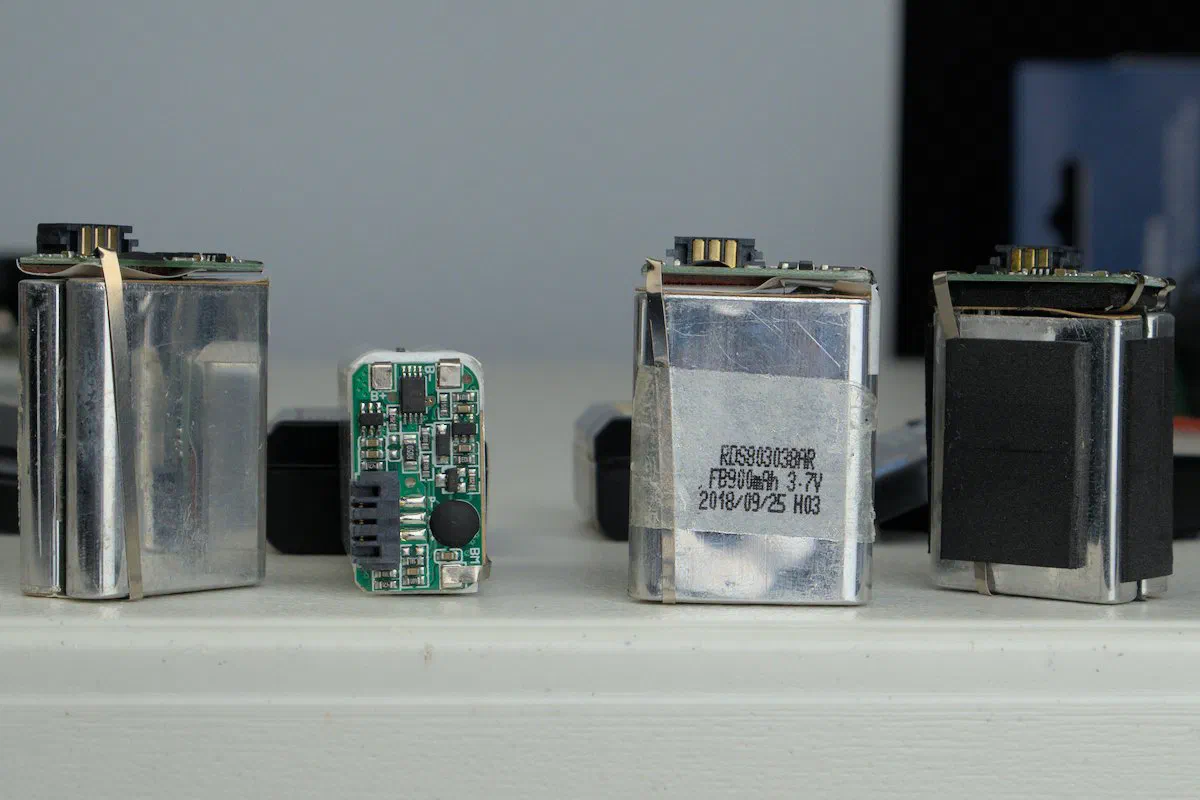

What’s inside third party Sony NP-FW50 batteries.

There are two easy ways to spot a low quality battery. Squeeze and weigh them.

If you can squeeze a battery, it’s a problem. That room should be filled with lithium ion cells, not foam and air.

If a battery is starting to expand, that is a sign that it should be properly disposed of. Low quality third party brand can have this happen to them within months of use.

If you have a OEM battery that came with the camera, you can use that battery as a reference point. Any batteries you purchase should be within a couple grams of the reference battery. If they are noticeably lighter, like 10g, that’s a sign that the battery will have a much lower capacity than what it is labeled as having.

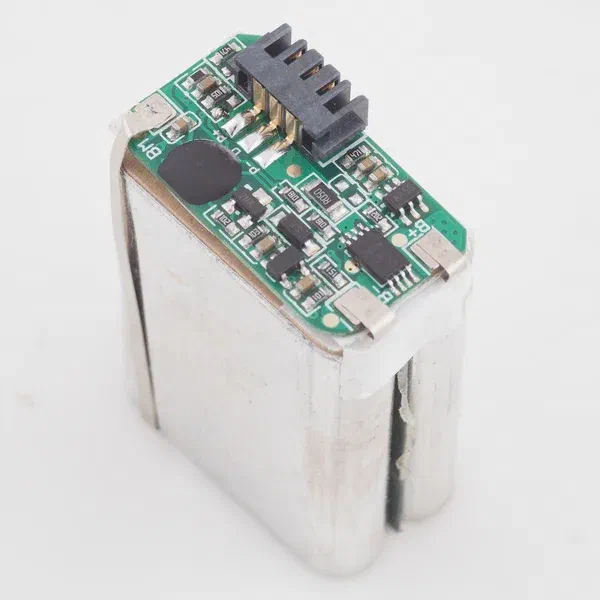

Camera batteries are 1 or 2 cells, a battery protection board with contacts, and a plastic shell. The quality of the battery is determined by the quality of the cells used.

The cells have product numbers and manufacturer data sheets that contains specs. Often the capacity of a cell will be printed on it.

It is impossible for a 7.4V battery to have a 1500 mAh capacity when the cells inside are 3.7V with a 900mAh capacity. The last time I checked cells did not exist with the energy capacity to create a 1500 mAh battery with a Sony NP-FW50 form factor.

/how-to-capacity-test-camera-batteries/third-party-battery-brands.jpg

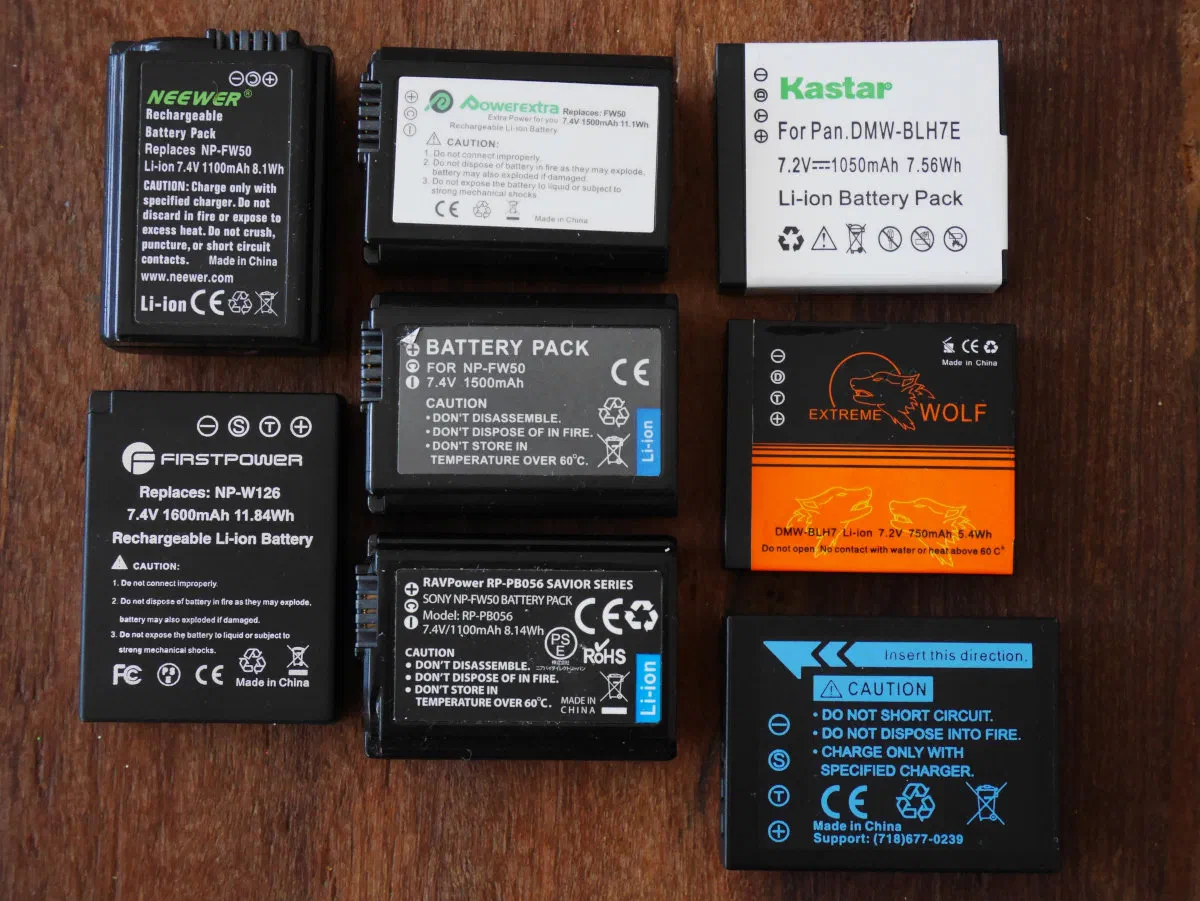

A variety of different batter brands.

Amazon is such a large part of the market that third party brands base their entire strategy around it. They show up, break all of Amazon’s rules, gets a bunch of sales, and then get banned.

They manipulate reviews by buying fake reviews and paying for reviews via gift cards. This can go on for years.

Once they get caught, they dump the brand and start over again with the same practices. All it take is a different packaging and a new sticker on the battery.

That’s why you won’t find RAVpower for sale on Amazon anymore.

4 pin connections (balance and temp?) T = Thermistor C = Charge Protection Circuit + = Positive terminal -= Negative terminal

The TEC-06 is an inexpensive battery capacity tester. It can be found on eBay or Amazon.

The TEC-06 needs a 1A (amp) via mini USB to work correctly. Many USB chargers do not provide enough power. The charger output should be labels, usually between the prongs.

It also does not come with a way to connect camera batteries to it.

Using a universal battery charger solves that problem. By unscrewing the case, you can easily remove the part that has the battery contacts and that holds the battery in place.

If you are not comfortable soldering, this can be a good option. You can simply cut the wires attached to the battery contacts, strip them, and then attach them to the TEC-06.

Another easy alternative is to use the battery holder from the chargers that are included with third party batteries. They often have a battery holder that clips into the charger.

The TEC-06 will discharge a battery until the cutoff voltage is reached. The energy will be turned into heat, which will be disipated by the fan and heatsink.

Outside the Shot is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to Amazon.com.

As an eBay Partner, I may be compensated if you make a purchase. I also participate in affiliate advertising programs with KEH and Adorama. More can be found on the Affiliate Discolsure page.

I have purchased gear from all of these companies and I expect them all to receive repeat business from me.

If the page doesn’t have the answer you’re looking for you can email me at contact AT this domain. That account will be checked on Sundays and Wednesdays.

You can also DM me on Reddit /u/OutsideTheShot or post in /r/OutsideTheShot.

The TEC-06 has 5 menu items and 4 settings.

  1. Discharged amp hours
  2. Battery Voltage
  3. Battery Cutoff voltage
  4. mA Draw
  5. Internal Resistance

When the device is first powered on, the display should be 0.000. The red LED closest to the display should be lit up. The line ends in (AH), meaning amp hours. We are interested in mAh, meaning milli amp hours, which are 1/1000th of an amp.

/how-to-capacity-test-camera-batteries/tec-06-milli-amp-hours-mah.jpg

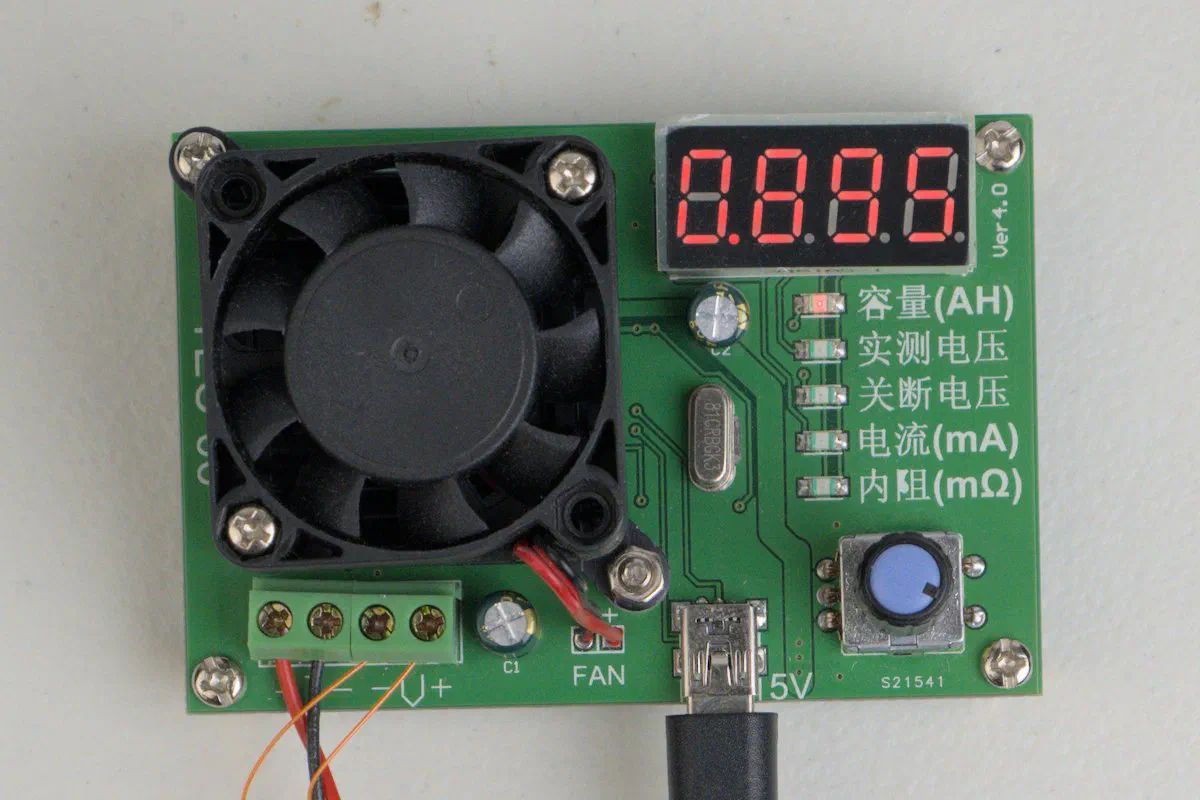

895 mAh (0.895 Ah) displayed while a battery capacity test is on going.

Pushing down on the encorder dial will start the capacity testing. It will take approximately 2-3 hours to discharge most batteries at the recommended settings below.

How many mAh will be shown on the screen while the test is ongoing. When the test is complete, the capacity will flash on the display.

Turning the dial clockwise one “bump” will go to the next menu item. The second LED will light up. In this case the battery I had attached had a voltage of 8.26V, meaning the battery was fully charged.

/how-to-capacity-test-camera-batteries/tec-06-battery-voltage.jpg

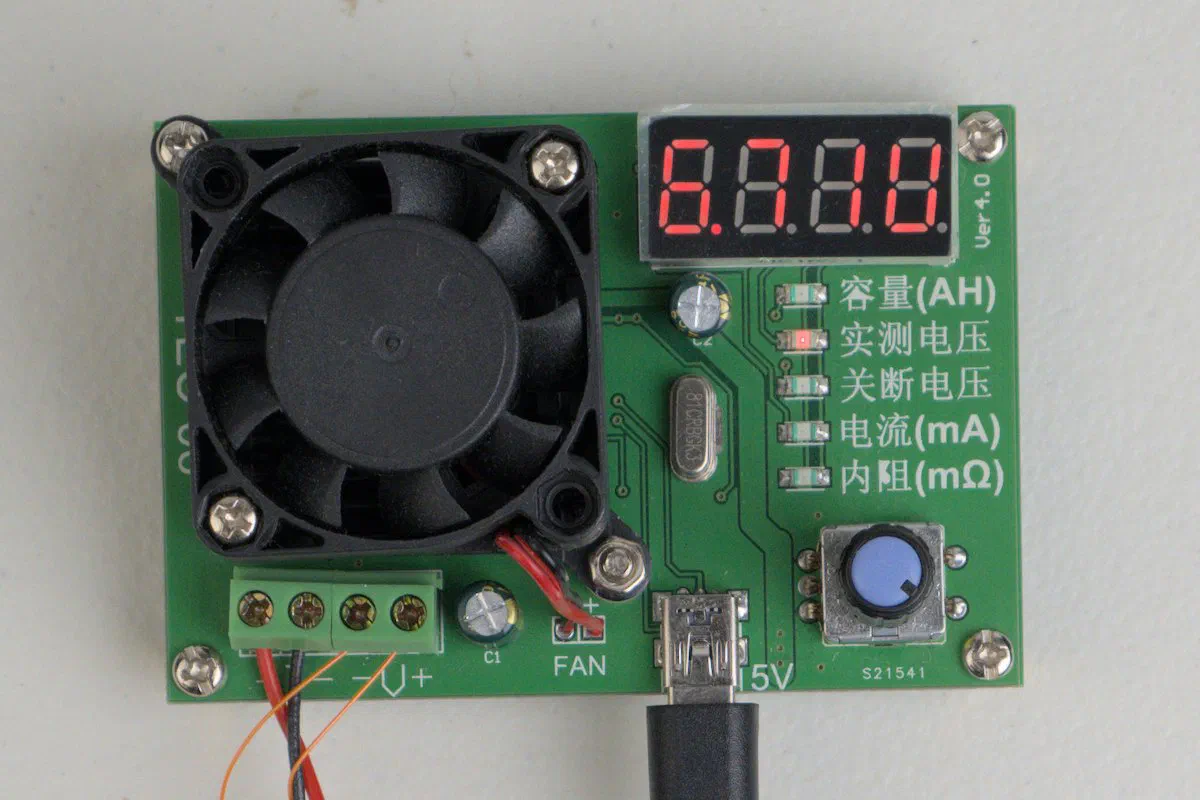

Battery voltage showing 6.71V

The voltage listed on the label shows 7.2V. That’s the nominal voltage of the battery. It’s just a quick way to summarize the expected performance and what will be the most common voltage during discharge.

Discharging the battery will cause the voltage to drop. Once it gets to a certain level, the battery will be considered completely discharged. Discharging it further will damage the battery. The damage can shortern the number of charge cycles the battery can go through or reduce the maximum charge it is capable of holding.

Using your camera, drain a battery until the camera shuts off. Take the battery out and place it into the battery holder for your TEC-06. You can then use it to see the current battery voltage. Take note of this voltage.

Another way is to use a multimeter on the battery.

The next turn to the right will bring you to the battery voltage cutoff setting. Here you want to set the voltage that you found from a drained battery.

My Panasonic GF7 powered off when the battery reached 6.4V.

/how-to-capacity-test-camera-batteries/tec-06-cutoff-voltage.jpg

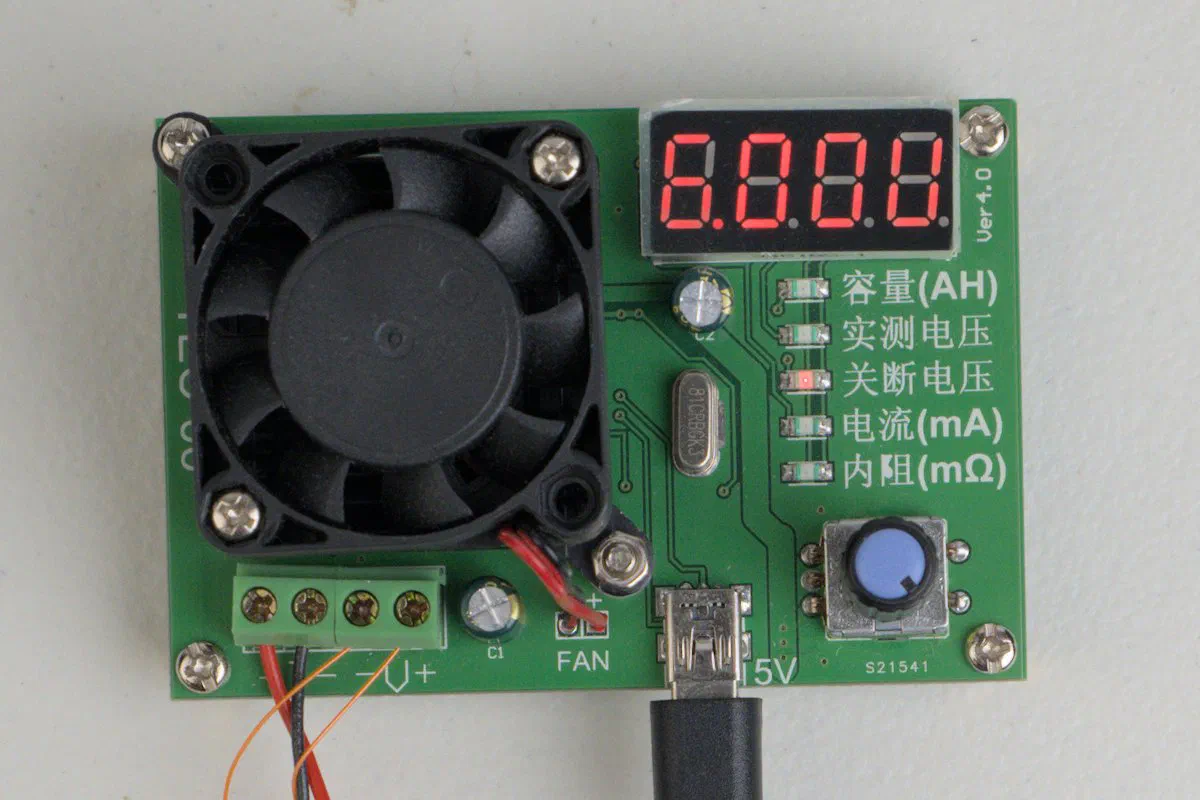

Battery cutoff voltage for a depleted battery.

The battery protection board also has a set voltage where it will prevent the battery from further discharging in order to prevent damage. This should be treated as a fail safe, especially with third party batteries. You don’t want to be the one to find out someone cheaped out.

/how-to-capacity-test-camera-batteries/tec-06-discharge-rate.jpg

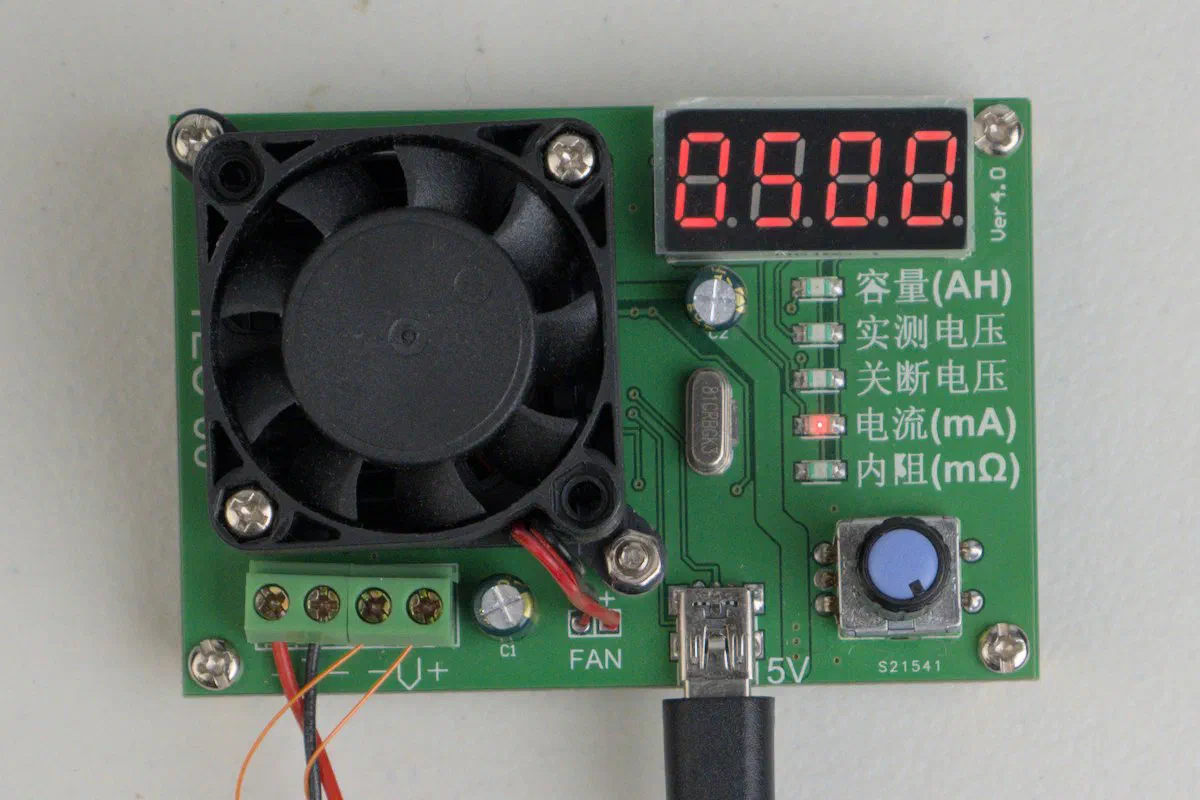

Discharge rate of 500 mAh.
